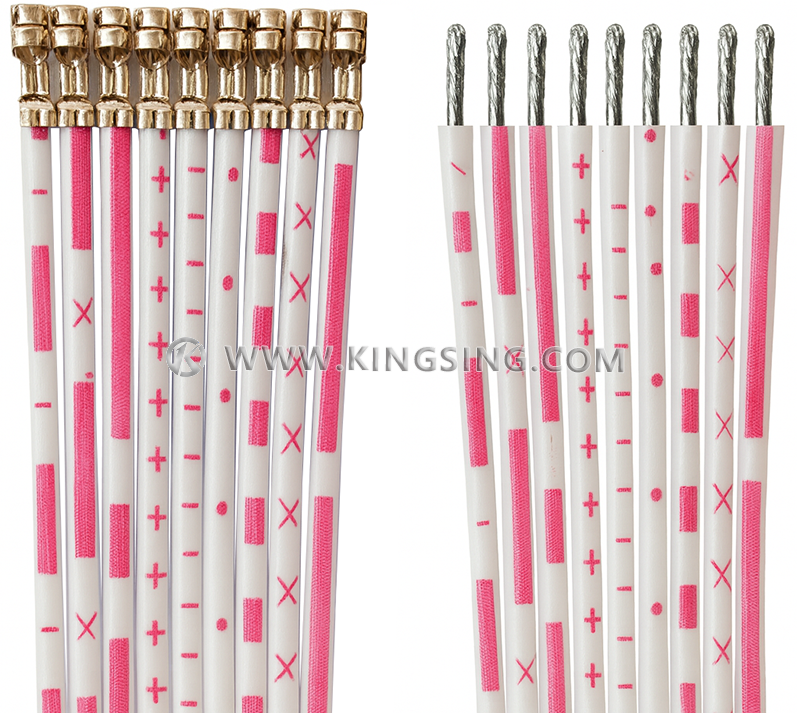

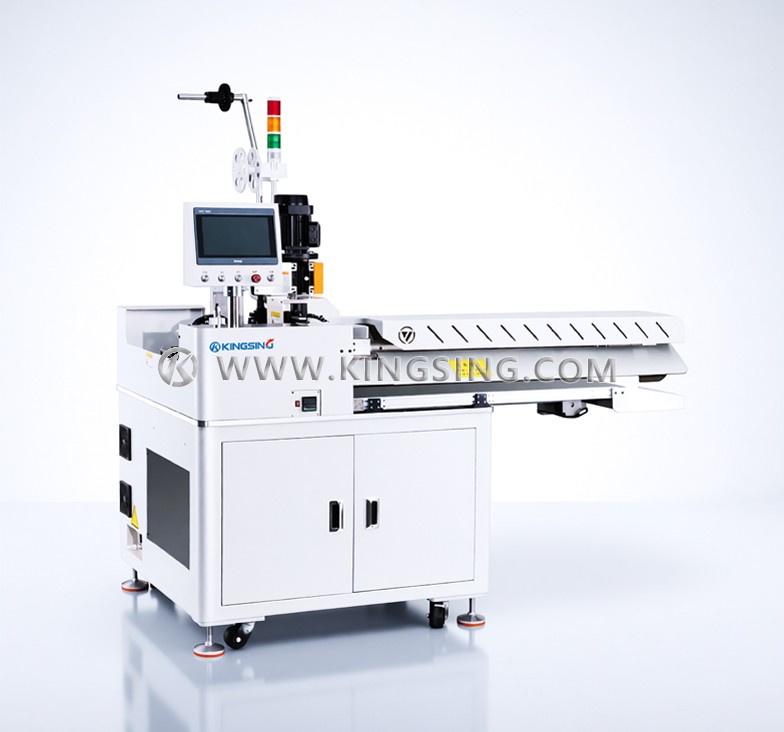

This fully automatic ribbon cable crimping and tinning machine is specifically engineered for high-precision processing of flat ribbon cables. The integrated system seamlessly combines ribbon cable cutting, stripping, crimping, and tinning operations to deliver complete cable assemblies in a single automated process.
Designed for ribbon cable applications in electronics manufacturing, this crimping and tinning solution handles both flat ribbon cables and standard electronic wires. The advanced crimping mechanism ensures reliable terminal connections while the precision tinning process creates perfectly prepared wire ends for superior solderability.
The ribbon cable processing system features mechanical arm feeding for accurate length control and a built-in conveyor belt system for automated material handling. An optional full-cover safety enclosure enables batch processing and automatic delivery of finished ribbon cables to the outside of the machine, eliminating manual handling and improving workplace safety.
Built-in monitoring functions include ribbon cable presence detection, terminal detection at the crimping station, and air pressure monitoring to maintain consistent crimping and tinning quality. With optional crimp force monitoring capabilities, this ribbon cable crimping and tinning equipment records real-time crimping parameters to ensure long-term connection reliability.
The integrated conveyor belt system works seamlessly with the optional safety enclosure to transport processed ribbon cables in batches, streamlining production workflow. The tinning process delivers uniform coating for optimal electrical conductivity and corrosion resistance.
Ideal for high-volume ribbon cable production in electronics, telecommunications, and industrial applications where precise crimping and professional tinning are essential for assembly quality and production efficiency.
| Applicable Wire | Flat Ribbon Cable, Electric Single Wires |
| Wire Gauge Range | AWG18–AWG28 |
| Cutting Length Range | 35–1000 mm (customizable) |
| Stripping Length | Side A: 1–7 mm Side B: 1-11mm (customizable) |
| Cutting Accuracy | ±0.5 + 0.2*L mm |
| Production Capacity | 600–700 cycles/hour (ribbon cable) |
| Crimping Capacity | 2.0T (customizable) |
| Power Supply | 220V 50/60Hz (customizable) |
| Air Supply | 0.5–0.7 MPa |
| Standard Dimensions | L2100 × W1000 × H1600 mm |
| Optional Configuration | Windows 11 computer control system (MES integration supported), terminal crimp force monitor, servo crimping station (programmable crimping height), full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, customized solutions available upon request |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
