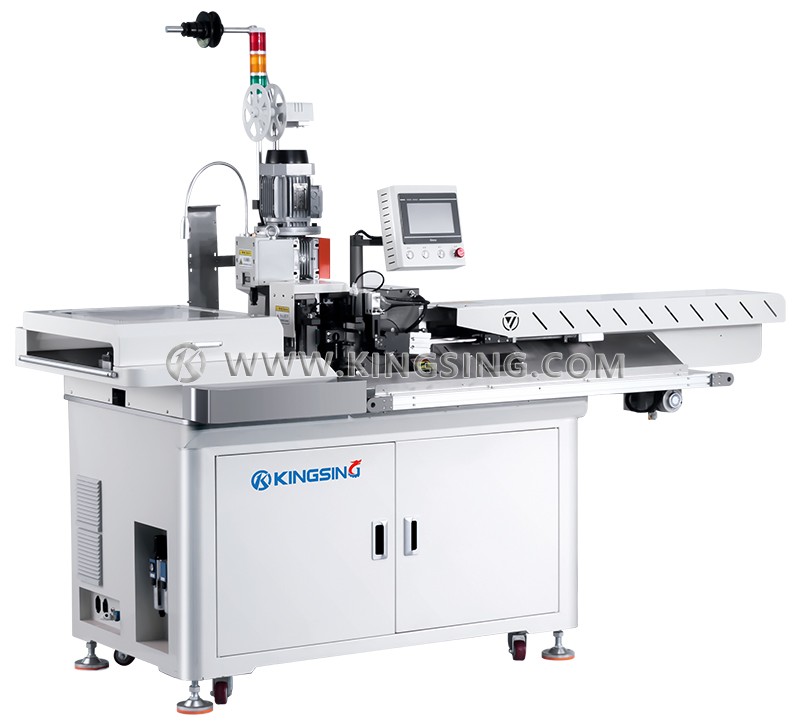

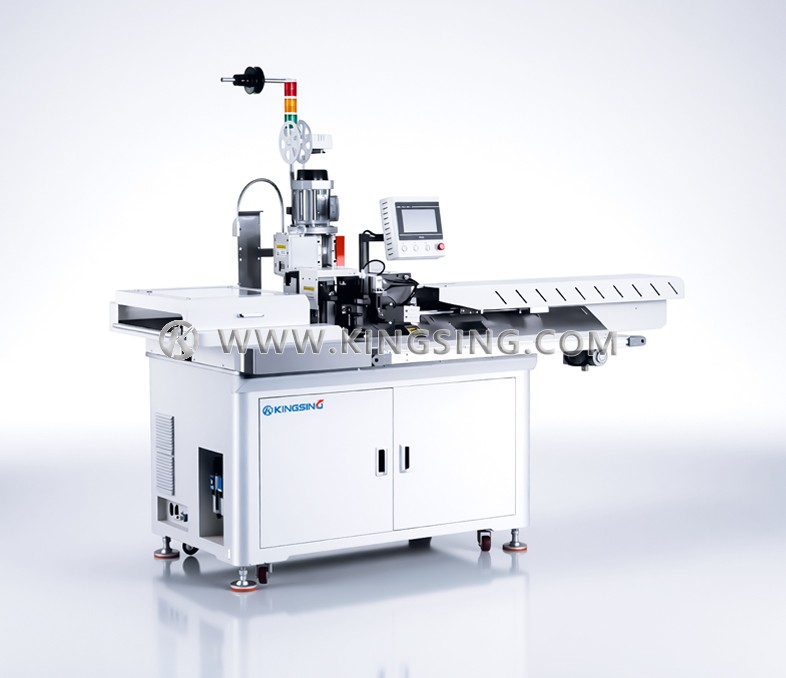

Flat Sheathed Cable Tinning and Crimping Machine

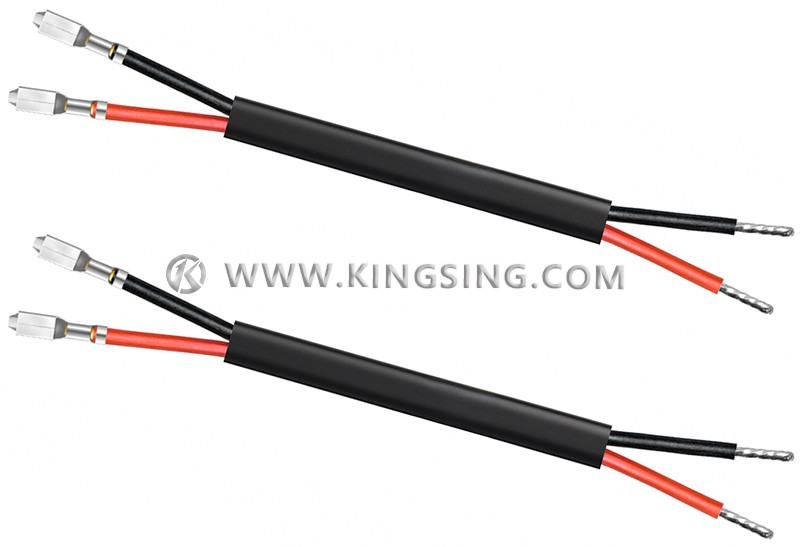

This advanced automatic flat sheathed cable processing machine represents a specialized evolution designed for applications requiring dual-end finishing capabilities. The system performs terminal crimping on one end while applying wire twisting and tinning on the opposite end, delivering complete cable assemblies in a single automated operation.

Engineered specifically for flat sheathed cable applications, this machine executes a comprehensive processing sequence including wire cutting, outer sheath removal, conductor stripping, followed by precise terminal attachment on one side and wire twisting with tinning application on the other. This dual-functionality approach eliminates multiple handling steps and ensures consistent assembly quality.

The equipment incorporates an intelligent conveyor system that automatically organizes completed cable assemblies into predetermined batch quantities. This automated sorting feature enables operators to set specific bundle sizes, with the conveyor systematically arranging finished products into organized stacks for streamlined collection and packaging operations.

Beyond its primary flat cable capabilities, the machine also processes standard single wires, offering flexible manufacturing options across various wire configurations. The complete servo-driven architecture utilizes 7 high-precision servo motors, guaranteeing exceptional control accuracy and repeatable performance throughout all assembly operations.

Featuring advanced servo control technology and precision linear guidance systems, this equipment maintains consistent operational reliability while dramatically reducing manual intervention requirements. The integrated terminal crimping and wire tinning capabilities make it particularly valuable for high-volume manufacturing in automotive harness production and electronic component manufacturing facilities.
