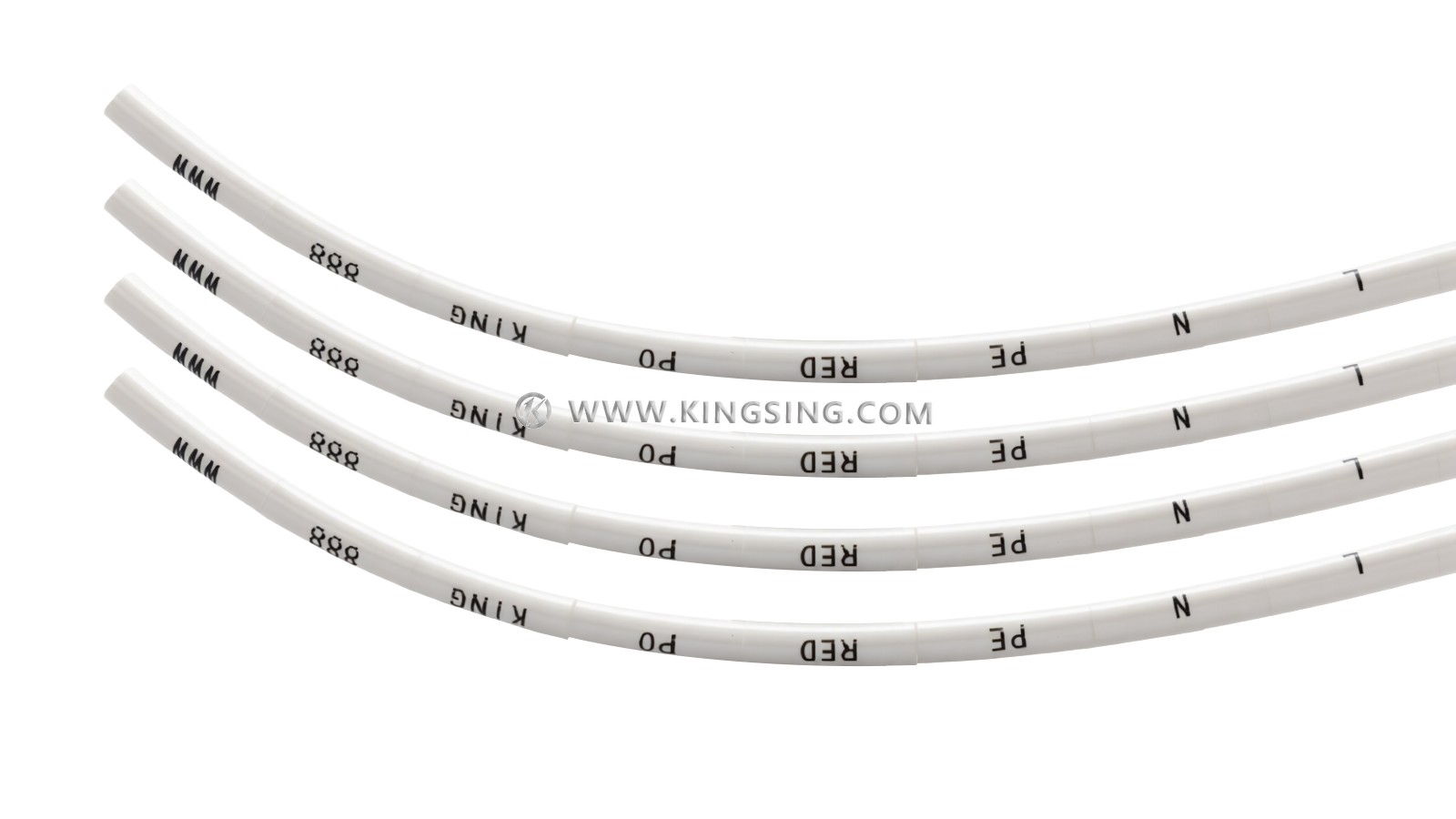

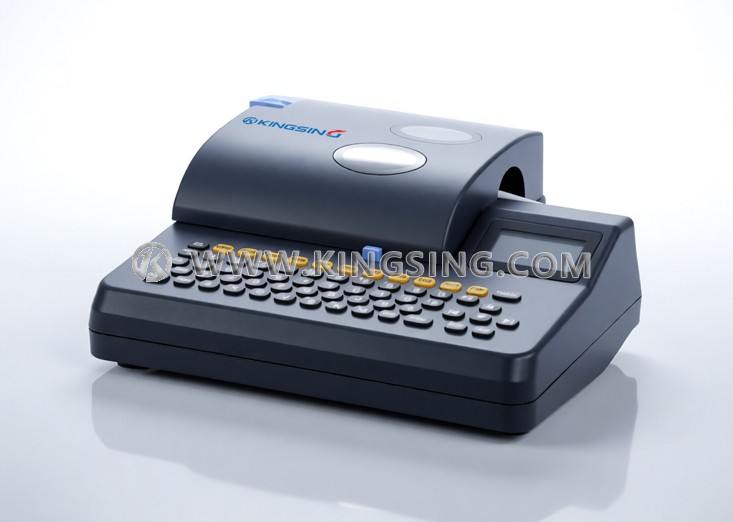

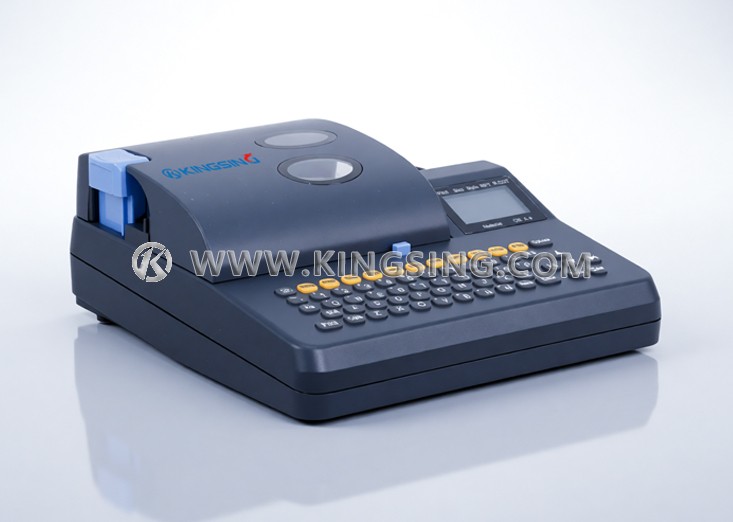

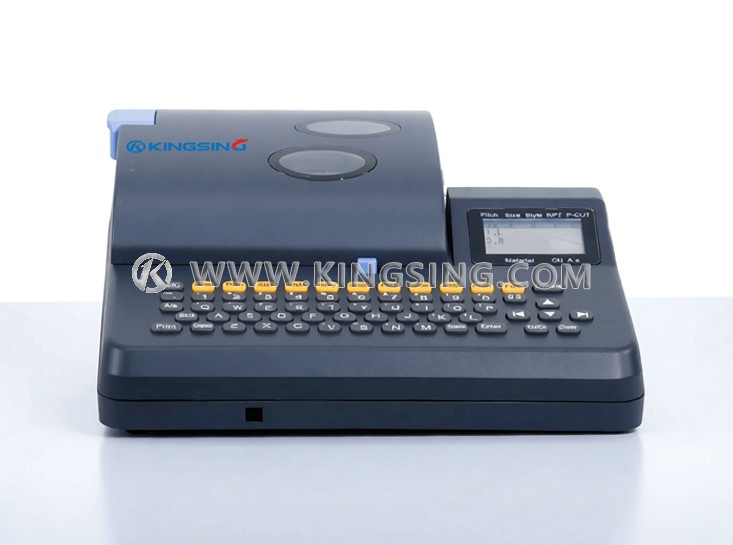

Multi-purpose printing: Prints PVC tubes, shrinkable tubes, and labels with 300 DPI precision using thermal transfer printing technology.
Display system: Features white backlight LCD screen with bilingual support (English/Chinese), displaying 2 lines of 14 characters/symbols per line.
Cutting system: Offers auto half-cutting or 2-line non-half-cutting modes with adjustable cutting depth via depth adjustment lever.
Printing speed: Operates at 25mm/second normally, or produces 35 sections of 20mm PVC tube or 40 sections of 20mm labels per minute in half-cut mode.
Memory capacity: Equipped with 1GB memory that stores up to 128 files simultaneously.
User-friendly operation: Simple 62-key computer keyboard ensures easy operation for all users.
Print durability: High-performance imported ribbon delivers clear, fade-resistant printing for long-term use.
Extended lifespan: Durable construction features wear-resistant coating on print head to prolong service life.
Cost-effectiveness: Combines high quality at affordable price with economical consumables to reduce total customer costs.
Portability: Includes carrying case for convenient transport to any location.
| Printing method: | Thermal transfer |
| Printing precision: | 300 DPI |
| Printing material: | PVC tube (Φ2 to Φ8mm), Heat shrinkable tube (Φ2 to Φ12mm), Label (6mm, 9mm, 12mm) |
| Printing speed: | 25mm/second |
| Half-cutting capacity: | 35 sections of 20mm PVC tube per minute |
| Display: | White backlight, 2 lines display |
| Printing content: | Characters, letters, numbers, and symbols |
| Font types: | 6 font sizes |
| Keyboard: | 64-key computer keyboard |
| Memory: | 1GB memory, maximum 128 files |
| Cutting method: | Half-cut, manual cut |
| Ribbon: | Black and white |
| Power supply: | DC 12V 3.5A |
| Dimensions (L×W×H): | 290mm × 270mm × 110mm |
| Weight: | 2.5kg |
| Operating temperature: | 15℃ ~ 35℃ |
| Category | Type | Specifications |
|---|---|---|
| Ribbon | Black | 12mm × 80m/Box |
| White | 12mm × 80m/Box | |
| Red | 12mm × 80m/Box | |
| Label | 6mm White | 6mm × 8m/Box |
| 6mm Yellow | 6mm × 8m/Box | |
| 6mm Silver | 6mm × 80m/Box | |
| 9mm White | 9mm × 8m/Box | |
| 9mm Yellow | 9mm × 8m/Box | |
| 9mm Silver | 9mm × 80m/Box | |
| 12mm White | 12mm × 8m/Box | |
| 12mm Yellow | 12mm × 8m/Box | |
| 12mm Silver | 12mm × 8m/Box | |
| Tube | PVC Tube | Φ2 ~ Φ10mm |
| Shrinkable Tube | Φ2 ~ Φ16mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
