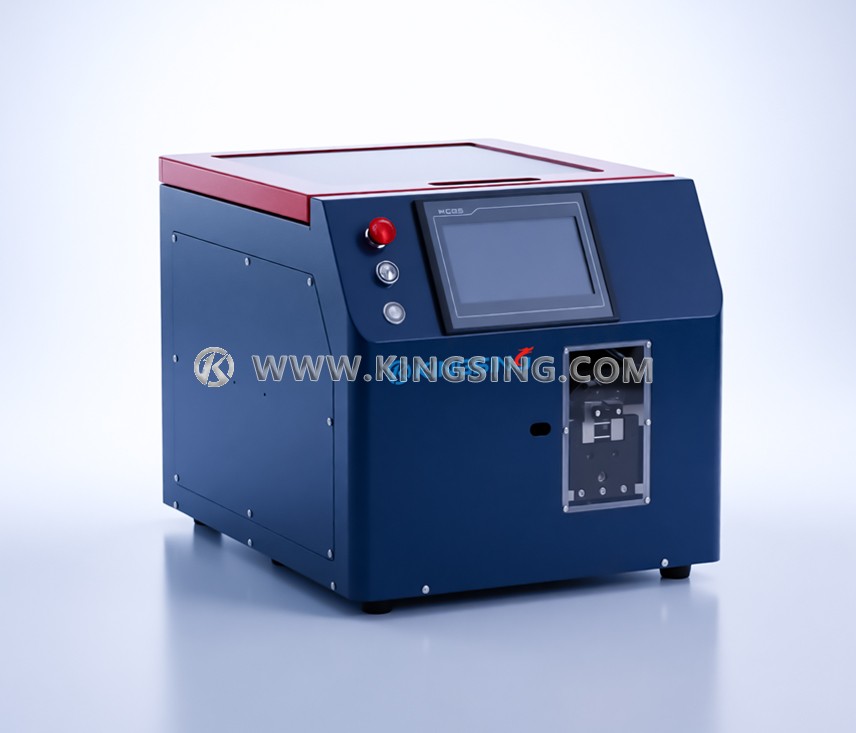

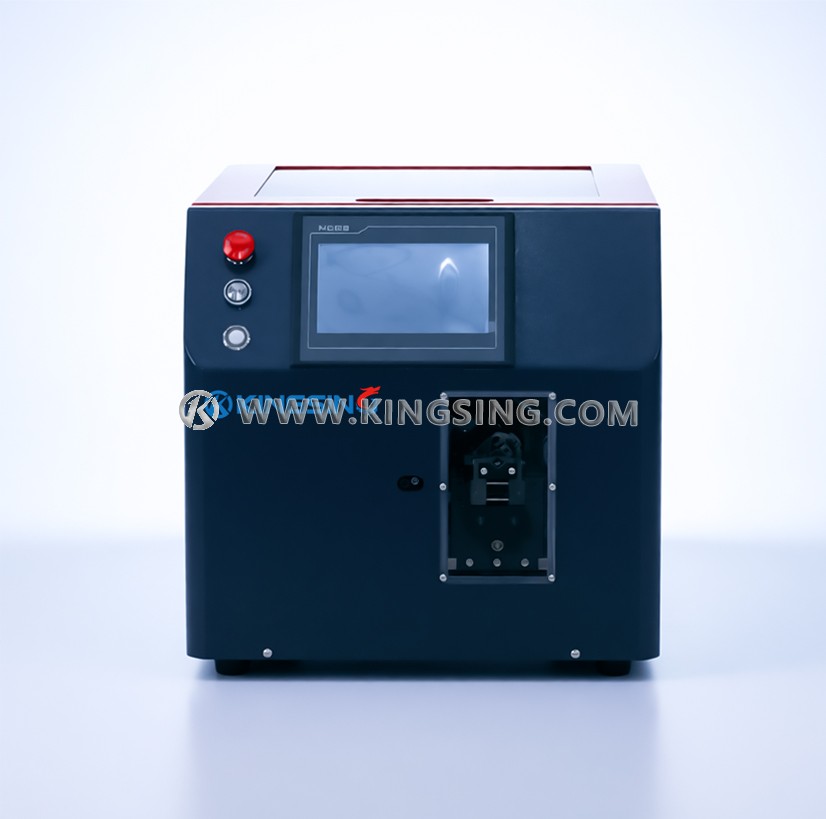

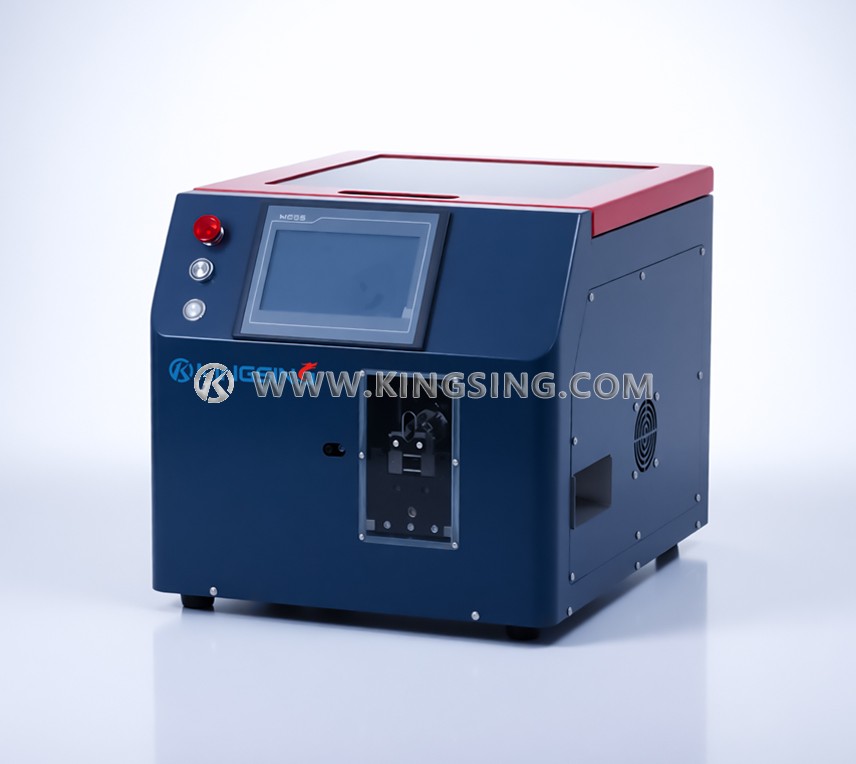

The Wire Stripping and Crimping Machine for Non-insulated Tube integrates three wire processing operations—precision stripping, conductor twisting, and tubular
terminal crimping—into a single automated platform. Manufactured by KINGSING, a CE and ISO9001 certified Chinese equipment provider, this machine delivers consistent performance for high-volume production in automotive, electronics, and electrical appliance industries where standardized wire processing is essential.
| Parameter | Specification |
|---|---|
| Applicable Wire Size | 0.5–4.0 mm² |
| Applicable Terminals | Tubular terminals |
| Stripping Length | 0–15 mm (13 mm max. for crimping terminals) |
| Stripping Length Accuracy | 0.02 mm |
| Crimping Shape | Quadrilateral |
| Production Efficiency | 900–1200 pcs/h (a normal cycle of 2.5 seconds; depends on the manual proficiency) |
| Rated Power | 400 W |
| Working Mode | Manual/Automatic |
| Air Supply | 0.6–0.8 MPa (stable, clean and dry air source) |
| Power Supply | 220V, 50/60Hz |
| Machine Dimensions | 600×500×450 mm |
| Net Weight | Approx. 78 kg |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
