Wire Harness Tinning and Crimping Equipment

  • Model:KS-T1067E
  • Net. Weight:
  • Dimension:

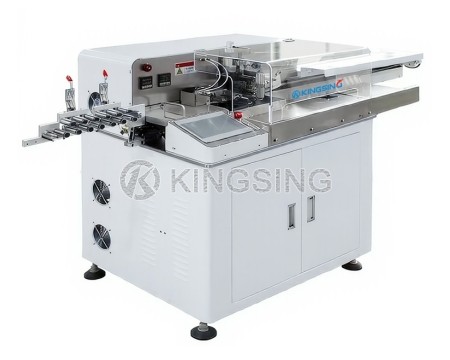

This economical fully automatic wire processing machine integrates multiple functions including wire cutting, stripping, twisting, tinning, and terminal crimping. Capable of processing 5 wires simultaneously, it delivers exceptional production efficiency for wire harness manufacturing applications.

The machine features a precision cutting blade with positive and negative screw rod structure ensuring high stripping accuracy. Flux and solder wire are added automatically with stable solder depth control. An integrated automatic smoking device efficiently exhausts fumes through a dedicated pipe system.

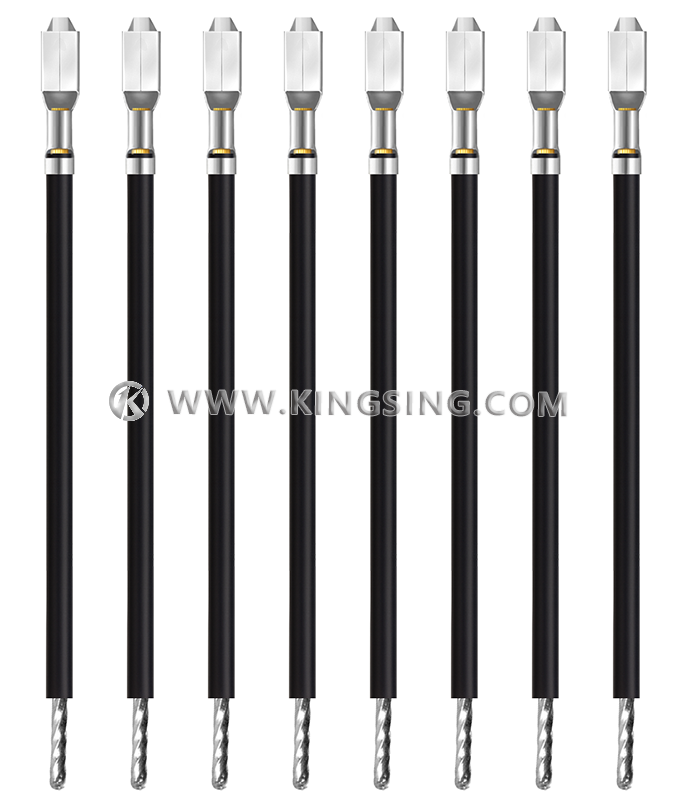

wire tinning and crimping

Built with modular flexible design concept, this machine can easily process various products with each functional module programmable for independent operation. When switching between different wires and terminals, only the corresponding wire inlet conduit and crimping die require replacement, maximizing machine utilization and minimizing downtime.

The color touch screen operation interface provides intuitive parameter setting with program memory function that stores processing parameters for different products in the database. One-key product switching capability significantly reduces debugging time and enhances operational efficiency.

Download: (1)
Applicable Wire DiameterAWG30~AWG18
Cutting Length30~800mm (customizable)
Cutting Accuracy±(0.5+L*2‰)mm     L=cutting length
Stripping Length≤10mm (customizable)
Tinning Length≤10mm
Crimping Force2T (cuztomizable)
Crimp Stroke30mm (40mm customizable)
Production Efficiency4000~6000 pieces/hour
Wire Delivery MethodPull wire clip
Operation InterfaceColor touch screen
Air Pressure0.5~0.7Mpa
Working Voltage220V 50/60Hz (customizable)
Net Weight250kg
Dimensions1950*600*1500mm
Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
