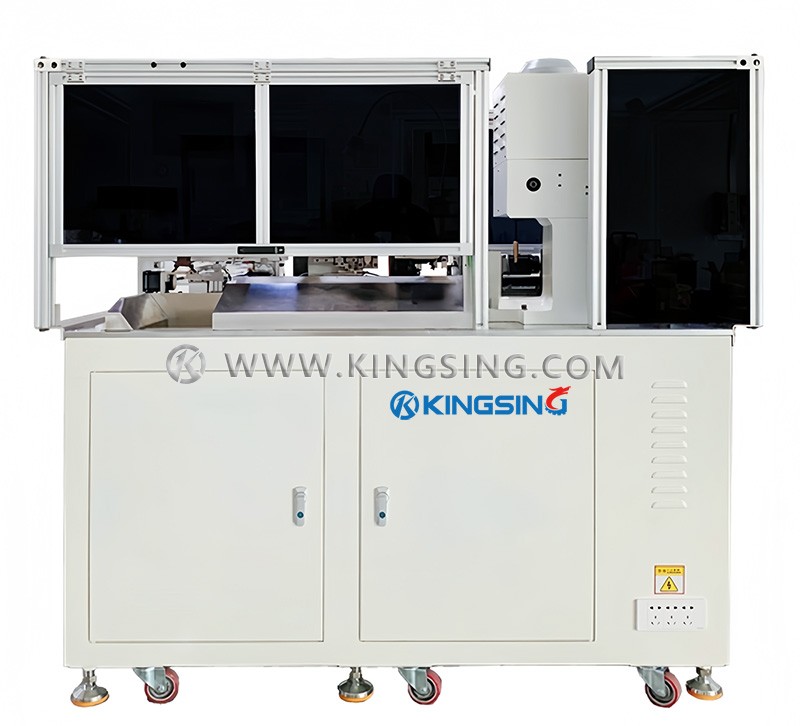

Dual-Head Crimping and Single-Head Housing Insertion System

  • Model:KS-T418
  • Net. Weight:
  • Dimension:

This fully automatic dual-head crimping and single-head housing insertion system integrates wire cutting, stripping, dual-end terminal crimping and automatic insertion of one end into connector housings fed by a vibrating plate. The system supports optional ultrasonic welding for specific housings.

The machine supports 2–8 colors of wires entering simultaneously (customizable), with color order and individual lengths programmable so each color can be repeated to populate multi-hole housings in sequence. Disabling the insertion module via program control converts the unit into a standard dual-head automatic terminal crimping machine.

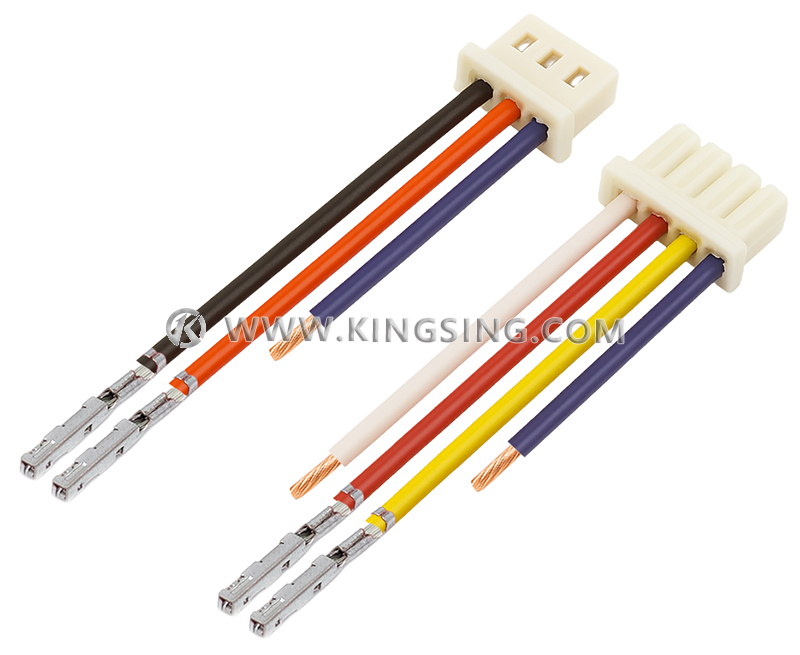

housing insertion machine

Designed with a modular, flexible architecture, functional modules can be enabled or disabled for different production needs. Product changes require only replacement of the relevant crimp dies, vibrating-plate feeders and insertion jigs, minimizing downtime and reducing idle waste.

High-precision servo motors drive the wire cutting/stripping and translation mechanisms. The cutting blade uses a bi-directional screw structure for high stripping accuracy, and a servo-driven translation mechanism maintains wires in a straight orientation throughout processing rather than using traditional rotation—ensuring stable positioning and reliable handling of demanding wire-processing tasks.

The terminal crimping unit is integrally cast in ductile iron to ensure rigidity and consistent crimp height. Optional process monitoring includes a terminal pressure monitor and an optional CCD visual inspection system to verify appearance and dimensions after crimping. Operation is via a color touchscreen with intuitive parameter settings and program memory; an industrial computer control system with MES connectivity is available for remote parameter read/write, remote production tasks and centralized management to improve traceability and overall efficiency. Optional tail processes and configurations are supported, including insulation sleeve insertion, heat-shrink tube insertion, wire twisting and dip tin, as well as long wire conveyor, safety shield and servo terminal options.

Download: (1) (2)
ParameterSpecification
Applicable Wire SizeAWG24–14 (0.2–2.5 mm²)
Wire Quantity2–8 colors (customizable)
Housing TypeSingle row housing, double row housing
Housing Hole≤ 20 holes
Cutting Length75–9999 mm (can be customized)
Stripping Length≤ 10 mm (can be customized)
Cutting Accuracy±(0.5 + L*2‰), L = cutting length
Maximum Pressure2T (3T models can be customized)
Crimping Stroke30 mm (40 mm stroke model can be customized)
Applicable TerminalsCross-feed terminals, direct-feed terminals, flag-shaped terminals, etc.
Production Beat2 seconds per hole
Air Pressure0.5–0.8 MPa
Rated Power2000 W (customizable)
Working Voltage220V 50/60Hz (110V can be customized) (customizable)
Net Weight≈ 500 kg
Dimensions1500 × 800 × 1860 mm
Wire Head ProcessStripping, crimping terminals, housing insertion
Wire Tail ProcessCrimping terminal (Optional: insert insulation sleeve, insert heat shrink tube, twist wire and dip tin)
Optional ConfigurationWindows 11 computer control system (MES integration supported), terminal crimp force monitor, CCD vision inspection system, servo crimping station (programmable crimping height), conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, bulk terminal vibratory feeding system, customized solutions available upon request
Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
